WE MAKE DROP EDGE POOL COPING FROM 10mm/ 20mm PORCELAIN or STONE TILES

WE MAKE DROP EDGE POOL COPING FROM 10mm/ 20mm PORCELAIN or STONE TILESWE MAKE DROP EDGE POOL COPING FROM 10mm/ 20mm PORCELAIN or STONE TILESWE MAKE DROP EDGE POOL COPING FROM 10mm/ 20mm PORCELAIN or STONE TILESWE MAKE DROP EDGE POOL COPING FROM 10mm/ 20mm PORCELAIN or STONE TILES

Drop edge pool coping manufacturer lead time is 21 - 28 days , general tile cutting is completed same day.

Get Estimate

About Us

Drop edge pool coping

Our goal is to provide fast reliable service, whilst providing high quality workmanship

We have been in the industry since 1986.

Since 2020, we have been making bullnose and drop edge pool coping profiles for local tile shops, builders, tilers and home owners.


We service the greater Brisbane and Sunshine Coast area.

Services

where can i get tiles cut

Tile Cutting

Re formatting

Re formatting

If you are undertaking some home repairs and need tile cutting, just mark the tiles and bring them to us. Generally we can do this type of work same day. ( less than 10 pces)



  • Straight or corner cuts
  • Power point  or tap holes
  • u shape cuts
  • Thin pieces


Make sure you phone ahead and please bring an extra tile or two

Re formatting

Re formatting

Re formatting

Found a tile that you love

 but it is not the size that you want.

We can cut any tile down to a smaller format.

example

600x600 cut down to 300x600

or

455x455 cut to 450x450

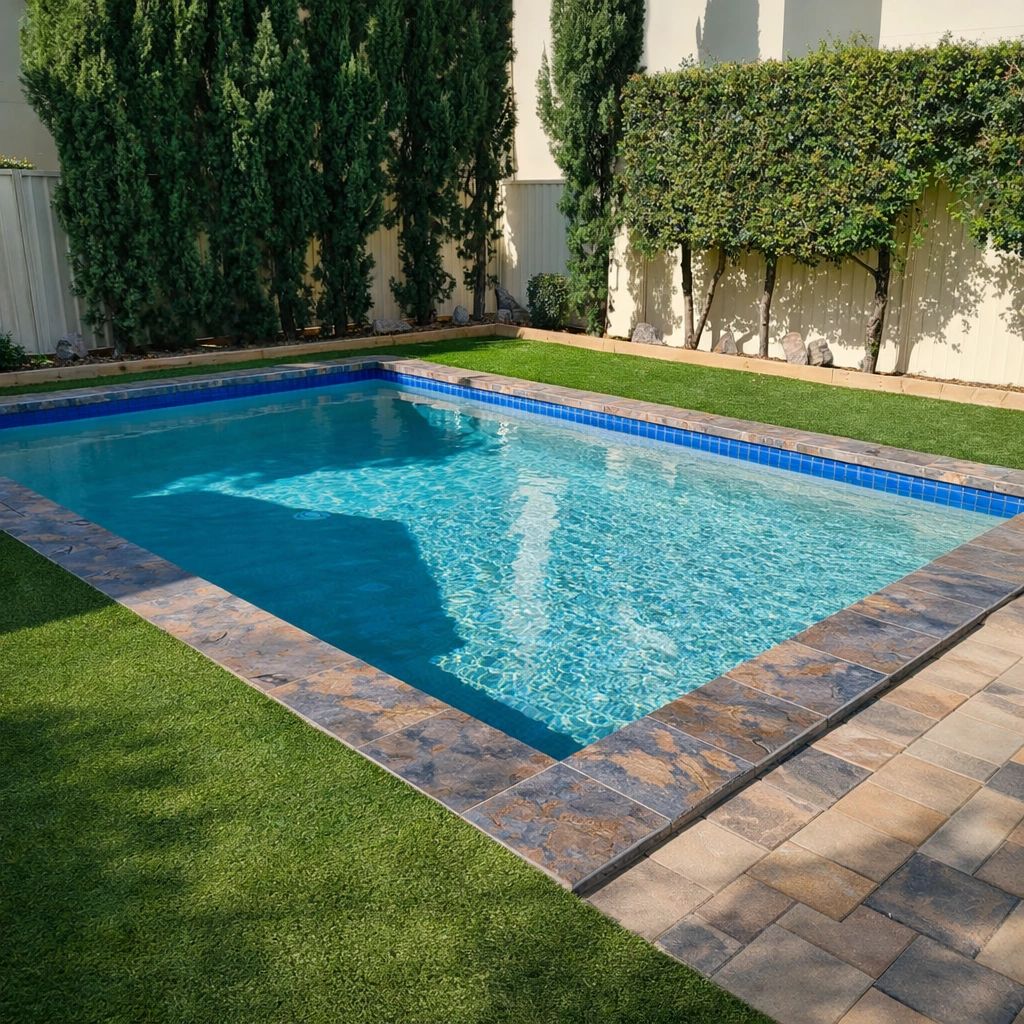

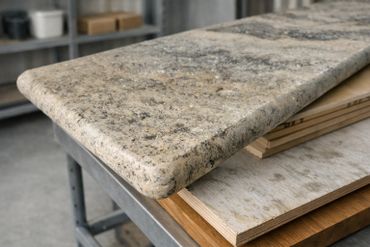

Pool edge tile

Pool Coping

Re formatting

Plunge Pool Coping

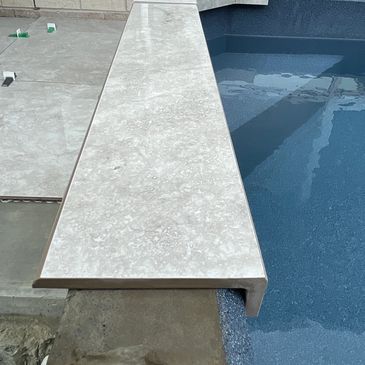

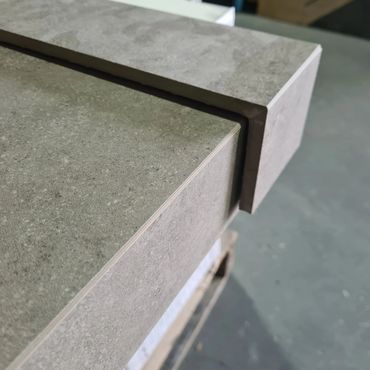

We manufacture drop edge pool coping from stone or porcelain tiles

See the different profiles within the gallery


The most popular is the 10mm tile. You can use the same tile that you have in the outdoor entertaining area and this can then be made to finish the pool




Plunge Pool Coping

Patching chipped or cracked tiles

Plunge Pool Coping

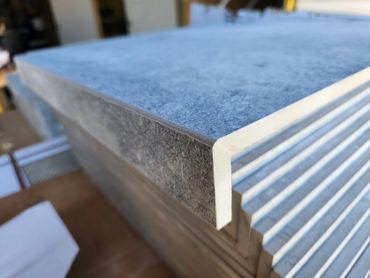

We are specialist in making 10mm porcealin drop edge pool coping for precast pools.

Just tell us the precast concrete wall thickness and the internal measurements and can work it out for you.

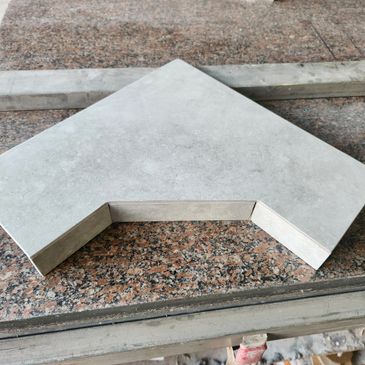

We make a complete corner pce, which really sets the finish pool off .



Pick up & delivery

Patching chipped or cracked tiles

Patching chipped or cracked tiles

We are able to collect your tiles from the tile shop that you purchased from and bring them to our warehouse.

Just let us know the order number or sales quote reference and we will do the rest.


Once the manufacturing has been completed we can then deliver directly to your place.

chipped tiles

Patching chipped or cracked tiles

Patching chipped or cracked tiles

Patching chipped or cracked tiles

Do you have a chipped or cracked tile, but you don't have any spare and the tiles now have been discontinued.

We can repair these on site, using epoxy resins colour matched so they blend into the tile.  See the gallery for results.


Project Gallery

drop edge pool coping

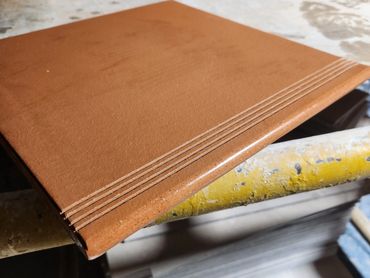

Step and Riser tile, manufactured

350mm Step with 180mm Riser

mitered tile

10mm Single Miter Apron

also called a Single drop face


Plungie pool coping

Plunge Pool 600 x 110mm x 50mm drop edge pool coping from 10mm tile

Plungie Pool corner pce

Plungie Pool corner pce

Chipped tile

Chipped tile has been fixed on site using colour matched epoxy. There are 3  patches see if you can see where the repairs are ??

tile cutting room

Our tile cutting room including dust extraction

Show More

Tools

M14 x 50mm Flush Cut diamond blade

M14 x 50mm Flush Cut diamond blade

M14 x 50mm Flush Cut diamond blade

Fits to a 5" angle grinder M14 thread

turbo diamond blade for removing grout from tile joints

$30 each



4 " Ultra Thin turbo diamond blades

M14 x 50mm Flush Cut diamond blade

M14 x 50mm Flush Cut diamond blade

diamond blade for porcelain tiles

Our ultra thin turbo diamond blades are specifically for cutting and mitering  hard porcelain tiles

4" or 105mm are $31 each

5" of 125mm are $32 each

Flexible Diamond Buffing Pads

M14 x 50mm Flush Cut diamond blade

Vacuum Brazed diamond profile router

diamond pad

Our flexible 4" or 105mm velco diamond pads have a  3mm White & Black diamond resin. The velcro backed pads come in the following grits  #50 , 100, 200, 400, 800, 1500 & 3000

Black pads are used on dark colored bisque where the white pads discolor the work

$20 each


Vacuum Brazed diamond profile router

Resin Colour paste for Superior Gold GV5

Vacuum Brazed diamond profile router

diamond profile tool

Our vacuum brazed diamond profile router bits.

M14 thread fits 5" angle grinder

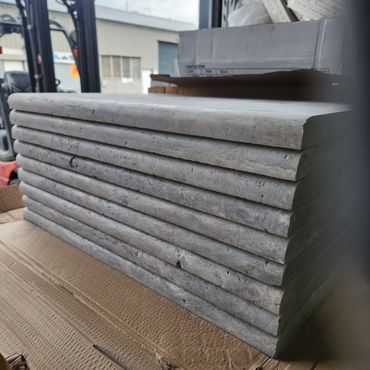

B10 half bullnose for 10mm porcelain tile

B20 half bullnose for 20mm porcelain tile

V10 full bullnose for 10mm porcelain tile

V20 full bullnose for 20mm porcelain tile

All profiles are $150

Diamond J Blade 300mm

Resin Colour paste for Superior Gold GV5

Resin Colour paste for Superior Gold GV5

diamond blade for 20mm

Our diamond J Blade is for cutting 20mm porcelain tiles

arbor 25.4mm

$199

Resin Colour paste for Superior Gold GV5

Resin Colour paste for Superior Gold GV5

Resin Colour paste for Superior Gold GV5

Colourant GV5

Individual colour 60ml for superior gold

Black, White , Brown , Buff, Grey, Red, Ocher, Green, Blue, Rust

$30 each

Superior Gold GV5

Superior Gold GV5

Superior Gold GV5

Gold GV5

 Superior GOLD is very light / white (pearlescent / translucent) epoxy resin.

Mixed with  1%‐2% white paste hardener (BPO).  GV5 and GV9 in stock.

Add colourant to match to the tile  making it ideal for invisible joints.

Internal or external application perfect for drop edge pool coping

Clean up using Acetone

Set time is 3 minutes , cure time is 20 minutes

$90  (950ml )

Tile Vibrator

Superior Gold GV5

Superior Gold GV5

Designed to assist with the removal of air pockets within the tile adhesive when installing larger format tiles


Bonus hard cover tool box

21V 2000ma battery with charger

Working time 8hrs

Recharge 2hrs

Vibration frequency 3000-6000r/min

6 speed gear setting

Digital display

 Suction cup lock for lifting tiles into place 50kg

Suction diameter 123mm

 $495


Vacuum Suction Cup

Superior Gold GV5

Our Tools and Epoxy

Designed to assist with the lifting of large format tiles


Comfortable grip

3.7v 3w motor

5v usb charger (same as most phone)

Recharge 1hrs

150kg capacity

Manual release

Digital display

Auto shut down after 2min ( when no pressure)

Suction diameter 200mm

 $240


Our Tools and Epoxy

Our Tools and Epoxy

Our Tools and Epoxy

We only sell the diamond tools that we use, this means;

  • they are the best value for money
  • they are always in stock
  • they will work


If you are unsure , you are welcome to try before you buy.


All prices include GST

We can freight/ post to you just request a quote

Social

Frequently Asked Questions

Please contact us if you cannot find an answer to your question.

If you can cut the easy tiles, that is great.

Just mark out the difficult cuts and drop these in to us, we can typically do these the same day ( less than 10 pces) , just remember to phone prior to dropping in.

Any tile cutter which is smooth to operate for you, that is, it scores the glazing neatly and then snaps the tile cleanly with the action being easy for you, then that is the right tile cutter for you. Each tile cutter will cut each brand of tile differently.



Every tile cutter uses a scoring wheel and there are two types;

Standard - sintered tungsten carbide

Titanium -  sintered tungsten carbide coated with titanium

The difference between the two is longevity . If you are just doing a project every now and then then the standard  wheel is fine . If you are a professional tiler then you should be using titanium as the wheel will stay sharper for longer.


Search for BAT tile scoring wheel to find, then search for the closest supplier near you.


There are multiple different styles and types of diamond blades.


We typically use our own brand of  Ultra thin turbo 105mm , this blade is ultra thin at 1.2mm thickness, continuous segmented compound (turbo) and is small at 105mm which means that when the blade heats up during the cutting process we do not get the blade warping or deforming. Using a larger blade say the 125mm when mitering tiles can result in a tile cut which is up to 1-2mm out of square due to the deformation of the blade.

Check to make sure that you can see small specks in the matrix, those small specks are the diamonds. If there are no diamonds then the blade will not cut.


Diamond blades can over heat, especially when cutting porcelain floor tiles. If you see spark's during the cutting action , stop cutting and allow the blade to cool down then dress the blade.


When the blade is hot and sparks occur this is the metal matrix melting, the matrix holds the diamonds onto the blade, so all you are doing is allowing the diamonds to become unseated and they fly off . If there is plenty of matrix then there are diamonds buried below within the matrix and you will need to dress the blade.


You can use a dressing stone, to clean the matrix and expose the diamonds so that they cut more efficiency. Run the blade through the dressing stone for at least 60 seconds, cutting into the stone multiple times.

If you don't have a dressing stone , you could use a hebal block, H Block or sandstone something which is light and aerated not as efficient but it will work.


To give you an idea , we clean our diamond blades prior to every job then after 5mins of use when we are cutting tiles so that we get the cleanest cut.


Search DTA Diamond dressing blade , then search for the closest supplier near you


Contact Us

For an estimate please email us

tilenorthside@gmail.com


Call Dave on  0432 012 420


NORTHSIDE TILE CUTTING

3_56 High Street, Kippa-Ring Queensland 4021, Australia

0432 012 420

Hours

 Monday - Friday:  9am - 3pm

Saturday: By appointment

Sunday: Closed


Please ensure that you phone prior to arriving.

Get a Free Estimate

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Cancel

Price List

All prices exclude GST

Tile cutting

The below prices are for 10mm porcelain tiles , add $22 for 20mm porcelain or stone tiles.

Straight Cut (less than 10 tiles)

$14 ea

Simple point to point cut

or more complex point to point such as under 20mm in width  add $5

Bulk straight cuts

$25plm

Such as reformatting tile, includes the cost of setting up a jig and arris edging the cut edge.

L shape cut

$16.50 ea

Simple

U shape cut

$22 ea

More complex than a simple L shape

eg. Door jamb

Power Point

$22 ea

Cutting a hole in the middle of the tile that has a cover flange covering the cut edge, simple cut

Floor Waste

$40 ea

A more complex type of cut;

Round Floor waste - please bring the template with you

Square floor waste - please bring template

Tap holes - please mark the center + the outside edge

Single miter cut

Complex work

$185 phr

For complicated work our hourly rate

Drop edge pool coping

$100plm

10mm porcelain tile with maximum drop of 150mm

drop from 151mm to 200mm add $11plm

20mm porcelain or natural stone tile  with max drop 100mm is $120plm

Plungie Pool Coping Corner pce

$150 each

10mm Porcelain tile 300x300 pce custom  cut to suit the corner of a Plungie pool  (see gallery for example )

Bullnose edge to tile

$80 plm

10mm porcelain tile , 1/2 round or round edge polished

Miter only

$40plm

1  x 10mm porcelain or ceramic tile

less than 10 tiles $20 each ( based on 600mm tile)

More than 6lm  $40plm

Chipped or cracked tiles

Phone for a quote

Please take photos of the cracked or chipped tiles about 600mm away so i can clearly see the issue, then text these through and we can send you a quote.

Collection / Delivery

Pick up tiles from a tile store

$140

Tiles must be packed onto a standard or euro pallet 1050 x1050 or  800x1200 and loaded via forklift.  Max 750kg

Delivery of Manufactured tiles to site

$210

Max 600 kg hand unloaded to the closes point undercover , per pallet
